Boosting Efficiency: Automated Sheet Metal Solutions

Sheet metal fabrication is undergoing a meaningful transformation, driven by advancements in automation. Companies are increasingly adopting integrated systems to streamline their processes, reduce costs, and improve overall efficiency. Microstep, a leader in automation solutions, is at the forefront of this revolution, offering complete systems designed to optimize sheet metal production from raw material to finished part.

Pfanzelt Maschinenbau Invests in Cutting-Edge Automation

Pfanzelt Maschinenbau GmbH,a manufacturer based in Rettenbach im Allgäu specializing in equipment for forestry and municipal landscape maintenance,has recently invested in a state-of-the-art production hall. This facility features a fully automated sheet metal production line,integrating a high-bay warehouse,advanced handling systems,precision cutting systems,and a robotic bending cell. This investment underscores the growing trend of companies embracing automation to enhance their manufacturing capabilities.

Customization and Small-Batch Production

Founded in 1991, Microstep’s thorough product range includes forest ropes, specialized vehicles, and tractor attachments tailored to individual client needs. This focus on customization necessitates flexible production processes capable of handling one-off projects and small series manufacturing. according to manufacturing Manager Roland Sterk, the ability to quickly produce prototypes and test components is crucial. This agility is made possible by Microstep’s automated solutions.

Sometimes we only need one or two components to test something.

Roland Sterk, Manufacturing Manager

The Rise of Automated Sheet Metal Fabrication

The demand for automated sheet metal fabrication is increasing across various industries. According to a recent report by Grand view Research, the global sheet metal fabrication market is projected to reach $357.72 billion by 2030, growing at a CAGR of 3.2% from 2023 to 2030. This growth is fueled by the need for increased efficiency, reduced labor costs, and improved product quality. automated systems like those offered by microstep are playing a key role in meeting these demands.

Key components of Automated Systems

Automated sheet metal production systems typically include several key components:

• High-Bay Warehouse: Provides efficient storage and retrieval of sheet metal materials.
• Handling Systems: Automate the movement of materials between different stages of the production process.
• Cutting Systems: Utilize laser or plasma technology for precise and efficient cutting of sheet metal.
• Bending Cells: Employ robotic arms to bend sheet metal into desired shapes.

These components work together to create a seamless and highly efficient production line.

Looking Ahead: The Future of Sheet Metal Production

As technology continues to advance, the future of sheet metal production will likely be characterized by even greater levels of automation and integration. Companies that embrace these advancements will be well-positioned to thrive in an increasingly competitive global market. Microstep’s commitment to innovation and its comprehensive range of automated solutions make it a key player in shaping the future of sheet metal fabrication.

Boosting Efficiency: Pfanzelt’s Strategic Shift to In-House Manufacturing

Facing challenges with external suppliers, Pfanzelt Maschinenbau GmbH has strategically invested in in-house manufacturing, significantly enhancing its production capabilities and adding substantial value to its operations.This move addresses previous supply chain vulnerabilities and positions the company for greater control over quality and delivery timelines. the expansion includes a state-of-the-art,largely automated machine park,highlighted by a newly constructed manufacturing hall that commenced operations in 2023.

Logistical Overhaul: Streamlining Operations with Automation

The centerpiece of Pfanzelt’s transformation is a comprehensive logistical concept designed to handle more than just sheet metal.Roland Sterk, manufacturing manager at PM Pfanzelt Maschinenbau GmbH, emphasized the initial lack of storage capacities as a key driver for automation. “We were initially lacking in storage capacities. The result is an overall logistical concept that can work more than just sheets.”

The result is an overall logistical concept that can work more than just sheets.
Roland Sterk, manufacturing manager at PM Pfanzelt Maschinenbau GmbH

This automation initiative stems from a blend of technological enthusiasm and the necessity to maintain competitiveness amidst personnel constraints. Pfanzelt primarily processes 10 and 12 mm thick sheets, with components reaching edge lengths of up to 4500 mm.

Cutting-Edge Technology: Integrating Storage, transport, and Processing

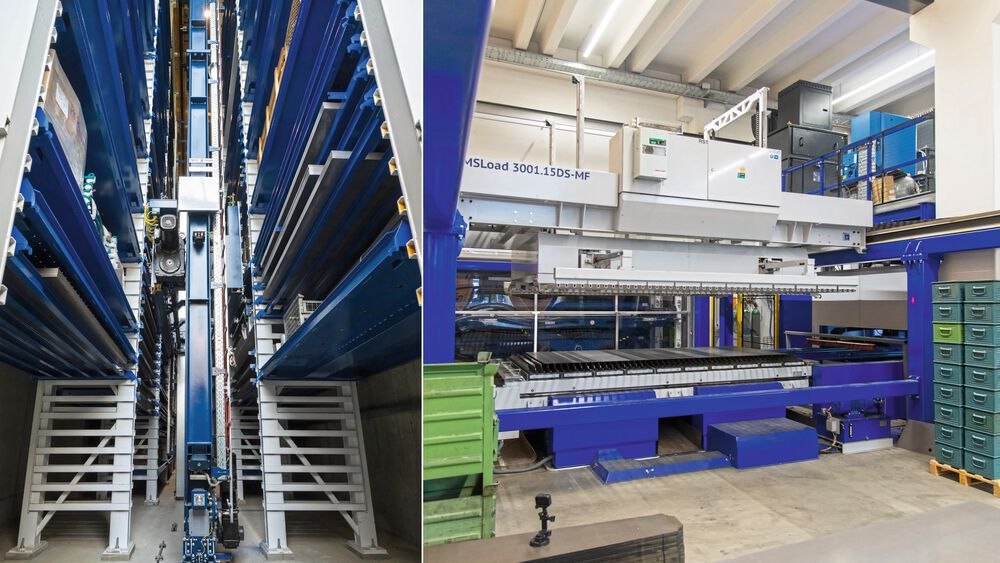

At the heart of the new production building lies an 18-meter-high shelving warehouse (Stopa), boasting 2679 storage spaces and capable of holding sheets with a total mass exceeding 8000 tons. A “MS Load” material handling system from Microstep efficiently transports sheet metal tablets to two advanced cutting systems. This system also returns cut pieces to the warehouse, optimizing material flow.

The cutting area features a 2D laser cutting system from the “MSF Pro” series and a 3D plasma cutting system from the “MG” series.The CNC fiber laser is dedicated to sheet cutting, while the plasma cutting system handles pipes and incorporates drilling, threading, and lowering capabilities. A plasmarotator,swinging up to 50°,prepares sweat seams,and an automatic calibration unit ensures consistently accurate cutting. The plasma source, a “Hi Focus 280i Neo” by Kjellberg, includes an automatic gas console and contour-cut speed technology.The entire periphery, including filter, plasma, and laser technology, is strategically positioned on a pedestal above the cutting system. This unique structure and the combination of laser and plasma technology were custom-developed and implemented by Microstep.

Microstep’s Expertise: A Key Partnership for Integrated Solutions

The project required the advancement and installation of mechanical engineering, control systems, and interfaces to the warehouse system, along with connecting the ERP system. Microstep’s extensive experience in special machines and digitization proved invaluable. Furthermore, sheet checks are directly transported from the warehouse shelf to bending presses and an automated bending cell with robots, enhancing overall efficiency.

Strategic Collaboration: Achieving Comprehensive automation

Roland Sterk elaborated on the overall concept of the new production hall, emphasizing the strategic investment in cutting capabilities. “The investment in the cut was also created in the course of the new hall. You have always flirted with being able to cut beams. hear the manufacturer Microstep has enormous experiences and great references. We had previously pre -processed sheets for sweat seams at a machining center. This required to transport large quantities of sheets internally.”

Initially, the plan involved a cutting system with an integrated fasen unit. Though, detailed consultations revealed that Microstep could deliver comprehensive automation for all necessary sheet metal processing. Consequently, Pfanzelt installed two cutting machines connected via a shared material handling system.Sterk highlighted the importance of having a single point of contact for all interfaces, avoiding the complexities of managing multiple vendors.

The Future of Manufacturing: Automation as a Competitive Edge

Pfanzelt’s investment in automation reflects a broader trend in the manufacturing industry. According to a recent report by McKinsey, companies that embrace automation can see productivity gains of up to 30%.By integrating advanced technologies and streamlining its production processes, Pfanzelt is not only enhancing its current operations but also positioning itself for sustained growth and competitiveness in the evolving market landscape.This strategic move underscores the critical role of automation in modern manufacturing, enabling companies to optimize efficiency, reduce costs, and maintain a competitive edge.

Streamlining Sheet Metal Processing with Automation

Sheet metal fabrication is undergoing a significant transformation, driven by the integration of automated cutting and handling systems. These advancements are enabling companies to optimize their production processes, reduce manual labor, and improve overall efficiency. A prime example of this trend is the implementation of a comprehensive cutting and forming system at an unnamed sheet metal provider, featuring both laser and plasma cutting capabilities.

Laser and Plasma: A Combined Approach to Cutting

The integrated system, operational as the spring of 2024, utilizes both laser and plasma cutting technologies to handle a wide range of material thicknesses. laser cutting is employed for sheets ranging from 2 to 8 mm thick, offering precision and intricate detail. For thicker sheets, ranging from 10 to 30 mm, the plasma cutting system provides a robust and cost-effective solution. This dual-technology approach allows the company to efficiently process diverse orders with varying material specifications.

Unattended Operation: Maximizing Production Capacity

One of the key benefits of the automated system is its ability to operate unattended, even during nights and weekends. This capability significantly increases production capacity and reduces downtime. According to recent industry reports, companies that implement automated systems can see a 20-30% increase in throughput compared to conventional manual processes. This continuous operation ensures that orders are fulfilled promptly and efficiently, enhancing customer satisfaction.

Economic Advantages: Reduced Labor and Improved Planning

Roland Sterk, from the sheet metal provider, highlights the economic advantages of the new system. Our main goal was that we have to move sheets as little manually as possible that we have a sufficient stock of sheets and that we can also store sheets back on the shelf. We can now plan exactly when we can cut what; The overview has gotten much better. And we can work with fewer staff.

The reduction in manual handling minimizes the risk of errors and injuries, while also freeing up employees to focus on more complex tasks. the improved planning capabilities enable the company to optimize material usage and reduce waste, further contributing to cost savings. The ability to operate with fewer staff is particularly significant in today’s competitive market, where labor costs are a major concern for many manufacturers.

Microstep: A Key Technology Provider

The sheet metal provider chose Microstep as their laser provider. This decision underscores the importance of selecting reliable and experienced technology partners when implementing automated systems. Microstep, known for its advanced cutting solutions, provides the necessary expertise and support to ensure seamless integration and optimal performance.
