AMD Radeon RX 9070 XT and RX 9070: A Gaming Revolution with RDNA 4 Architecture
The world of gaming graphics has taken a significant leap with the official launch of the AMD Radeon RX 9070 XT and RX 9070 GPUs. Introduced at CES 2025, these powerful graphics cards are designed to cater to mainstream to mid-to-high-end users. Priced at US$599 and US$549 respectively, these GPUs boast the AMD RDNA 4 architecture, offering a compelling combination of performance and affordability. Let’s delve into the technical specs and performance metrics that make these cards stand out.
AMD Radeon Specifications: A Deep Dive
Navi 48 Chips and Transistor Count
Both the Radeon RX 9070 XT and RX 9070 utilize the cutting-edge TSMC N4P (4nm) process, featuring the Navi 48 chips. These chips house an impressive 53.9 billion transistors within a 357 mm2 area, ensuring top-notch performance and efficiency.
Computing Units and Accelerators
The Radeon RX 9070 XT features up to 64 sets of computing units (CUs), each containing 64 Streaming Processors, 1 ray tracing accelerator, and 2 AI accelerators. This configuration results in a total of 4096 streaming processors, 64 3rd generation ray tracing accelerators, and 128 2nd generation AI accelerators.
The RX 9070, on the other hand, is a chip-cut version of the RX 9070 XT, blocking out 8 sets of computing units. This results in 56 sets of computing units, totaling 3584 streaming processors, 56 third-generation ray tracing accelerators, and 112 second-generation AI accelerators.
Sapphire’s PURE Series Graphics Cards: Design and Cooling
Design and Cooling Details

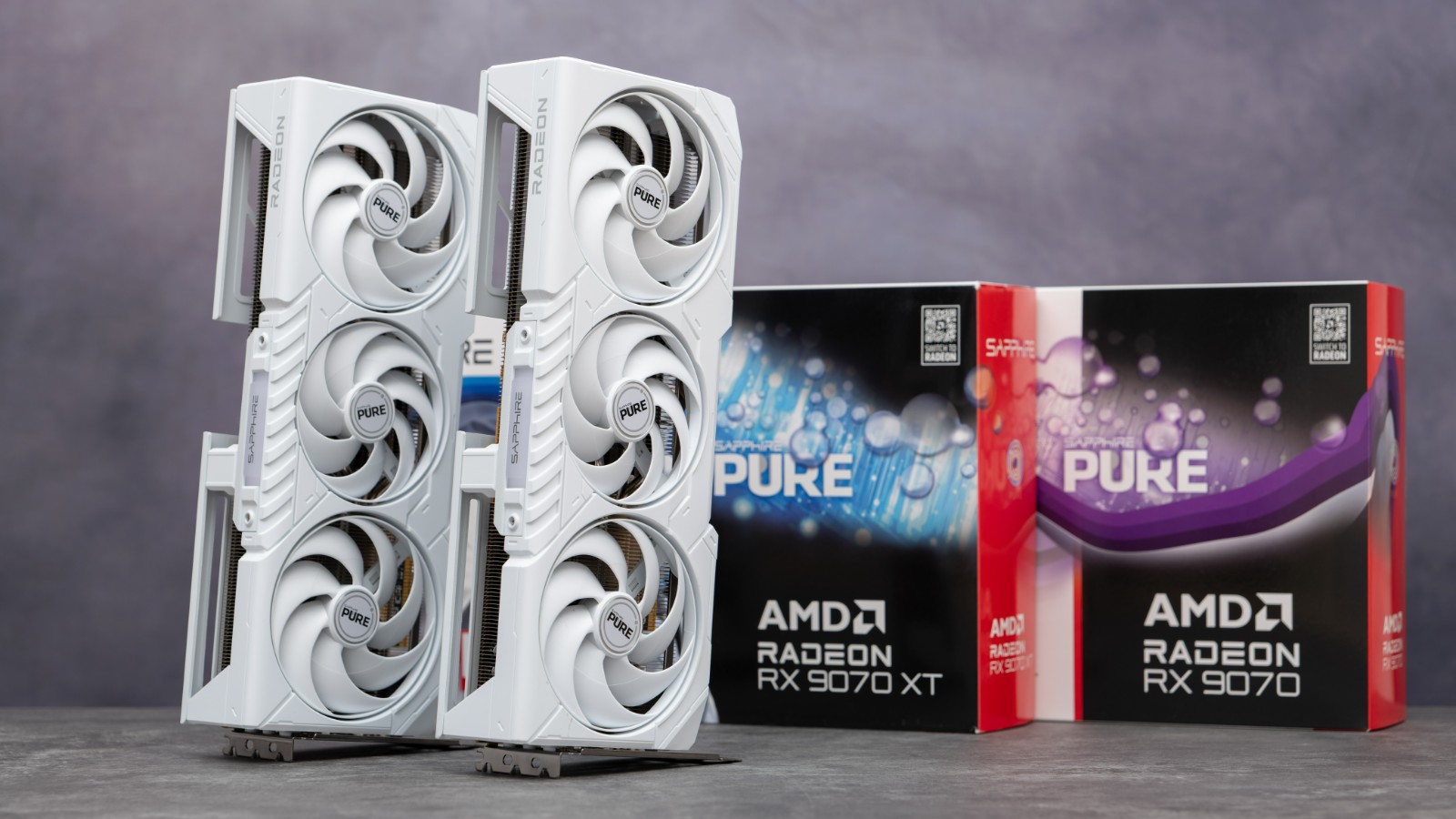

The tested samples, provided by AMD and Sapphire, include the PURE Radeon RX 9070 XT and RX 9070. The PURE series by Sapphire is noted for its small overclocking capabilities right out of the box. Both graphics cards share a distinct white and mecha-style design, with identical cooling designs, fan counts, and overall dimensions. The cards are identically 3 slots thick and support 2 groups of DisplayPort 2.1a and HDMI 2.1 each. The aluminum alloy backplate enhances structural integrity and heat dissipation.
The integrated heat dissipation module features 5 composite thermal conduits, extending beyond the PCB to cover the GPU, GDDR6 memory, and VRM power supply. The Honeywell PTM7950 phase-change thermal interface material ensures efficient heat transfer between the heat sink and GPU. The fan setup, with 1 medium and 2 large-size AeroCurve fans, optimizes airflow efficiency by reversing the central fan, minimizing airflow conflicts.
The PCB is a robust 12-layer board with 2 oz copper foil, occupying about 60% of the total card length, leaving ample space for heat dissipation. The power terminal includes 2 sets of PCIe 8-pin inputs and an ARGB terminal compatible with the motherboard for RGB lighting control.
Performance Benchmarks: Comparing the Competition
3DMark Testing
The testing platform employed the AMD Ryzen 7 9800X3D processor, with comparisons against the GeForce RTX 5070 and 5070 Ti. In benchmarks like Time Spy and Time Spy Extreme (DirectX 12 games), the RX 9070 XT outperformed the higher-priced RTX 5070 Ti by 6%, while the RX 9070 surged 18% ahead of the comparably priced RTX 5070. In the Steel Nomad heavy load test, directX 12 mode showed a 4% lead, while Vulkan tied between the RX 9070 XT and the test opponents.
Rx 9070 Pure Raytracing
- PURE RAY AND FSR!
The Port Royal test showed a lag behind and Speed Way test showed 28% ahead of RTX 5070 Ti. TSR bilayer accomplishing best ports.
Frame Rate Performance
| Metrics | RX 9070 XT Performance | RX 9070 Performance |
| DirectX Rasterization | Very High | Slightly Low |
| Rays | Most High | Low / Medium |
| FSR 4 | High | High |
Energy Efficiency and Thermal Performance
Power Consumption and Temperature Management
The RX 9070 XT is set to consume 304W, with actual detection reaching 336W. The RX 9070 operates at 220W, peaking at 272W. In terms of temperature, the core temperatures of the RX 9070 XT and RX 9070 reach 52°C and 55°C, respectively, with hot spot temperatures at 77.5°C and 72.8°C. The memory temperatures are moderately high, hovering around 90°C.
Summary and Value Proposition
The Radeon RX 9070 XT, at US$599, is a formidable contender in the gaming market. Its performance in rasterized games matches that of the GeForce RTX 5070 Ti, priced at US$749. Although its ray tracing capabilities are not on par with the RTX 5070 Ti, it outpaces the RTX 5070 (US$549) by 14% in ray tracing games.
The Radeon RX 9070, priced competitively at US$549, surpasses the GeForce RTX 5070 at the same price, (even in ray tracing games) , showcasing its immense value for money.
FSR 4, which leverages AI accelerators, offers improved image quality. However, it lacks the multi-frame generation support found in DLSS 4. Currently, FSR 4 requires manual activation through the driver. Upcoming firmware will shape this.
Overall, both the RX 9070 XT and RX 9070 deliver competitive performance at an excellent price point, making them top choices for mainstream gamers.
Future Trends and Insights
Advancements in GPU Architecture
The launch of the Radeon RX 9070 XT and RX 9070 signifies a significant shift in GPU technology. The RDNA 4 architecture represents a culmination of AMD’s innovation, offering improved efficiency and performance. As technology evolves, we can expect further advancements in GPU design, with a greater emphasis on AI and machine learning integration. Future GPUs are likely to feature even more powerful AI accelerators, enhancing super-resolution capabilities and overall gaming performance.
Enhanced Thermal Management
Thermal management remains a critical aspect of GPU performance. With increasing computational power, GPUs will require more sophisticated cooling solutions. Innovations in phase-change materials and advanced fan designs will play a crucial role. The Radeon RX 9070 XT and RX 9070 set a high standard in this area, ensuring optimal performance even under heavy load.
The Rise of AI in Gaming
AI is already transforming the gaming landscape. Future GPUs will likely see even more integration of AI, not just for super-resolution techniques like FSR 4, but also for real-time gameplay enhancements. AI-driven analytics could provide insights into player behavior, optimizing gameplay settings for a personalized experience. The potential for AI in gaming is vast, and the industry is just beginning to scratch the surface.
FAQ Section
What are the key differences between the RX 9070 XT and RX 9070?
The RX 9070 XT features 64 sets of computing units, while the RX 9070 has 56 sets. The RX 9070 XT also has more ray tracing and AI accelerators, providing better performance in certain tasks.
How does the power consumption of the RX 9070 XT compare to the RX 9070?
The RX 9070 XT has a higher power consumption, set at 304W, compared to the RX 9070’s 220W. However, the actual detected power consumption for the RX 9070 XT can reach 336W, while the RX 9070 peaks at 272W.
What is FSR 4 and how does it compare to DLSS 4?
FSR 4 is AMD’s latest super-resolution technology, which uses AI accelerators to enhance image quality. Unlike DLSS 4, FSR 4 does not support multi-frame generation, but it offers competitive performance in games that support both technologies.
